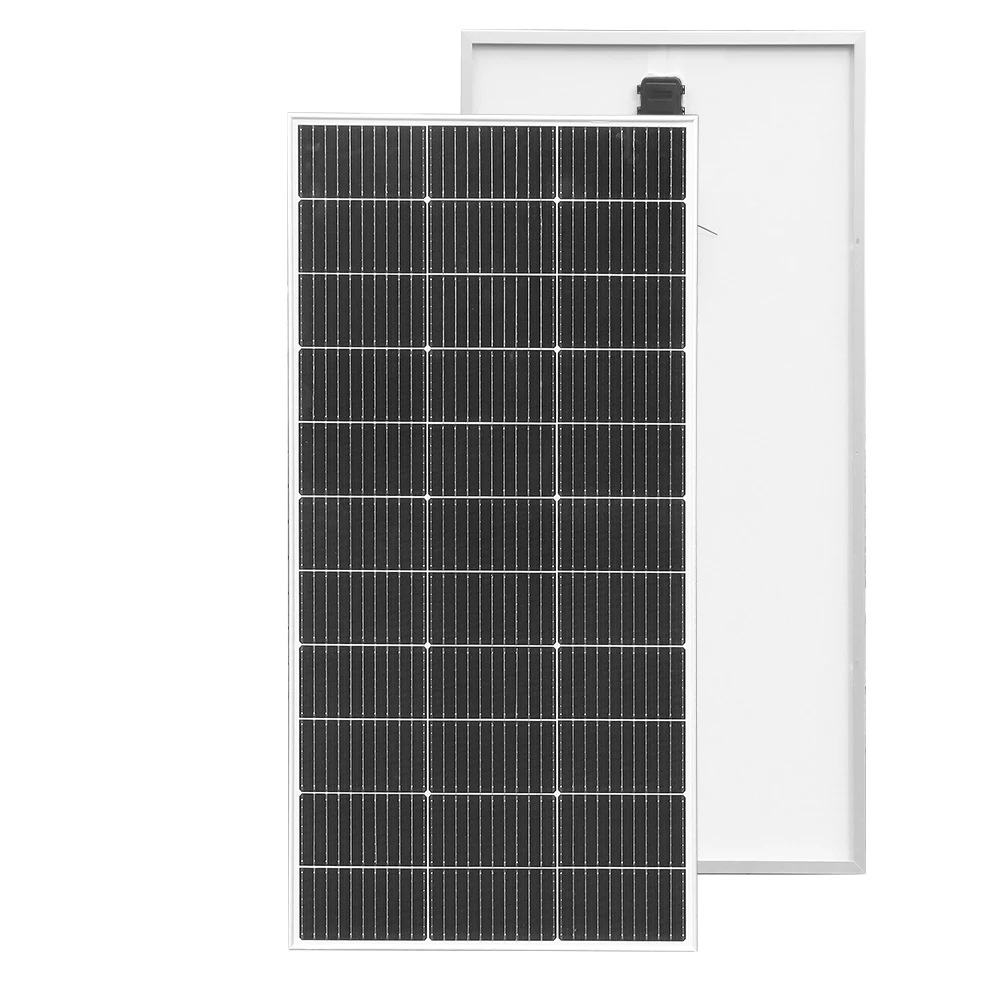

WUZECK Rigid Solar Panel Power Battery 50W Solar Module 100W Solar Charger 120W Glass Solar Cell 150W Outdoor Generator home

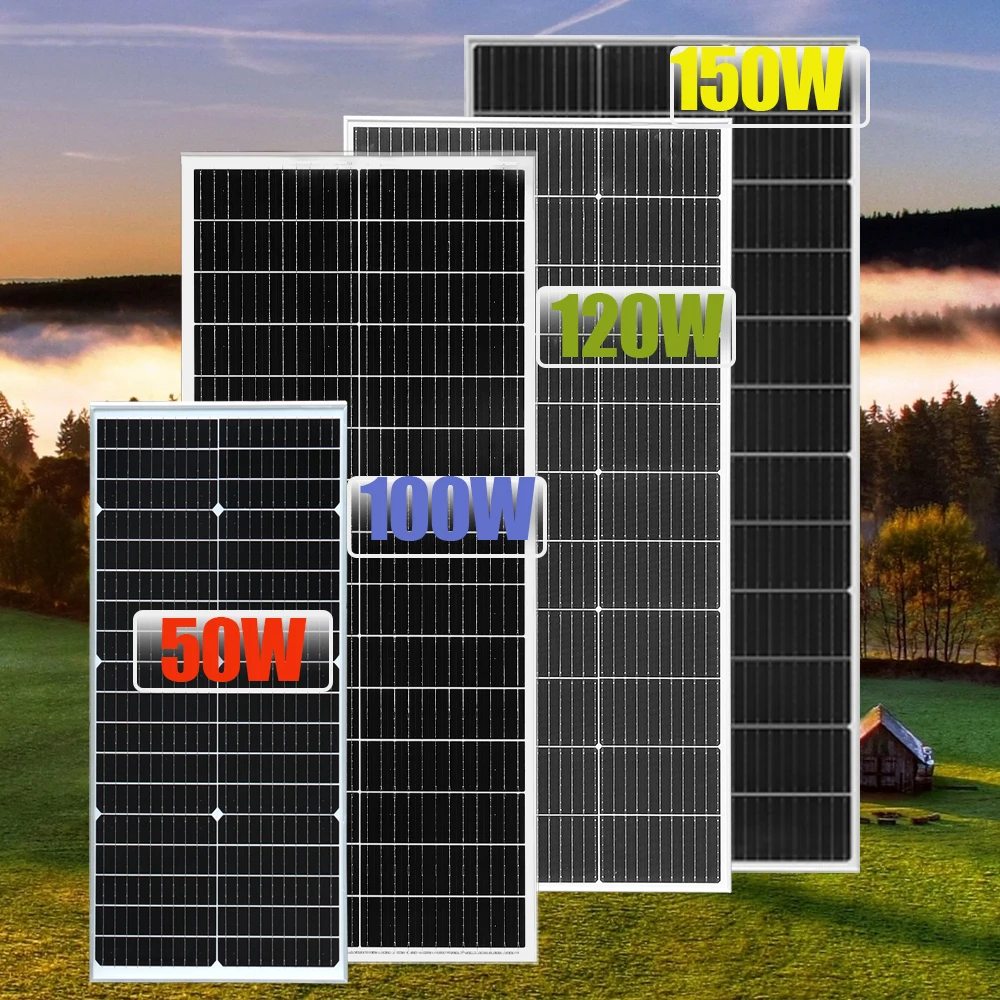

This link offers rigid framed glass solar panels with single-panel power ratings of 50W / 100W / 120W / 150W for selection.

About this item

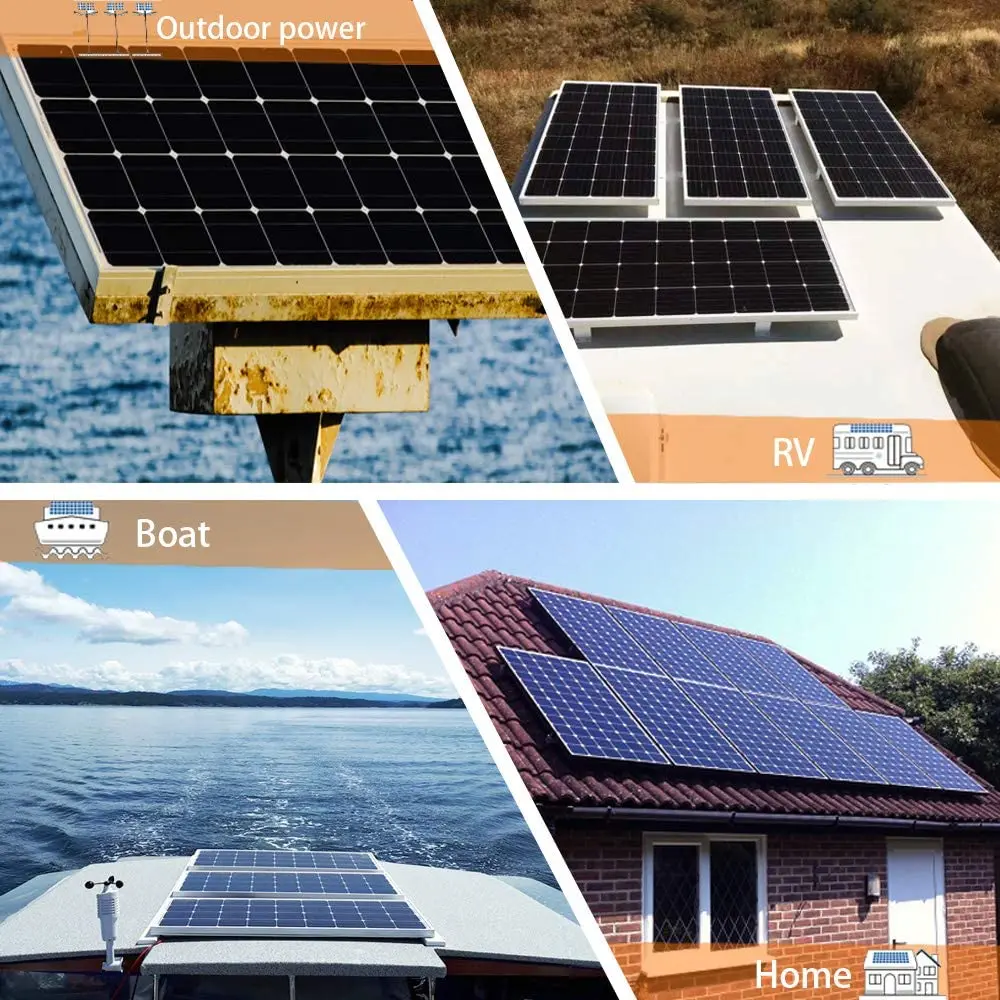

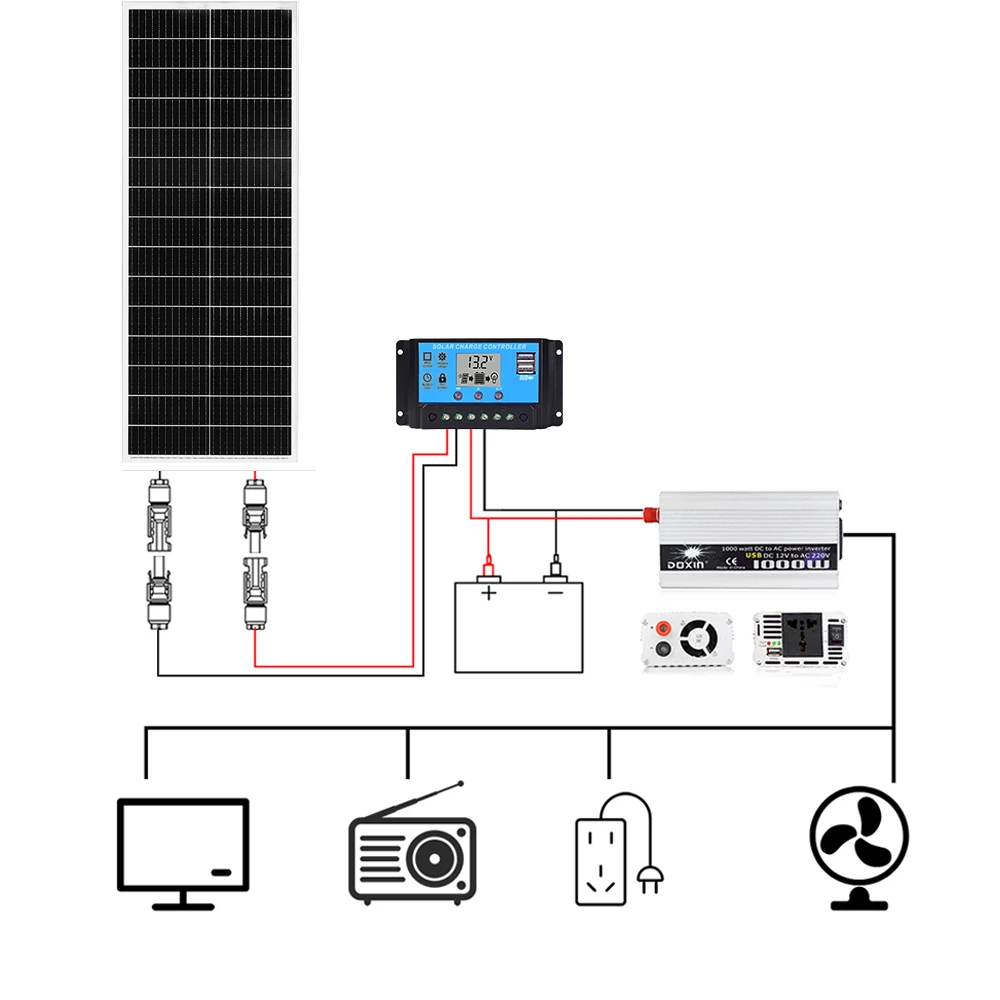

Multiple Compatibility:Perfect solar power kit for variety of off grid applications like shed, cabin, gate opener, etc where 12V batteries is used, as well as to charge and maintain Seal Lead Acid, etc batteries in car, Rv, boat, marine, trailer, camper, pump etc. （Note that the black controller can only be connected to lead-acid batteries ,The blue controller can be connected to LiFePO₄, Lithium Ion, AGM, SLA, GEL, EFB, MF, batteries etc.)

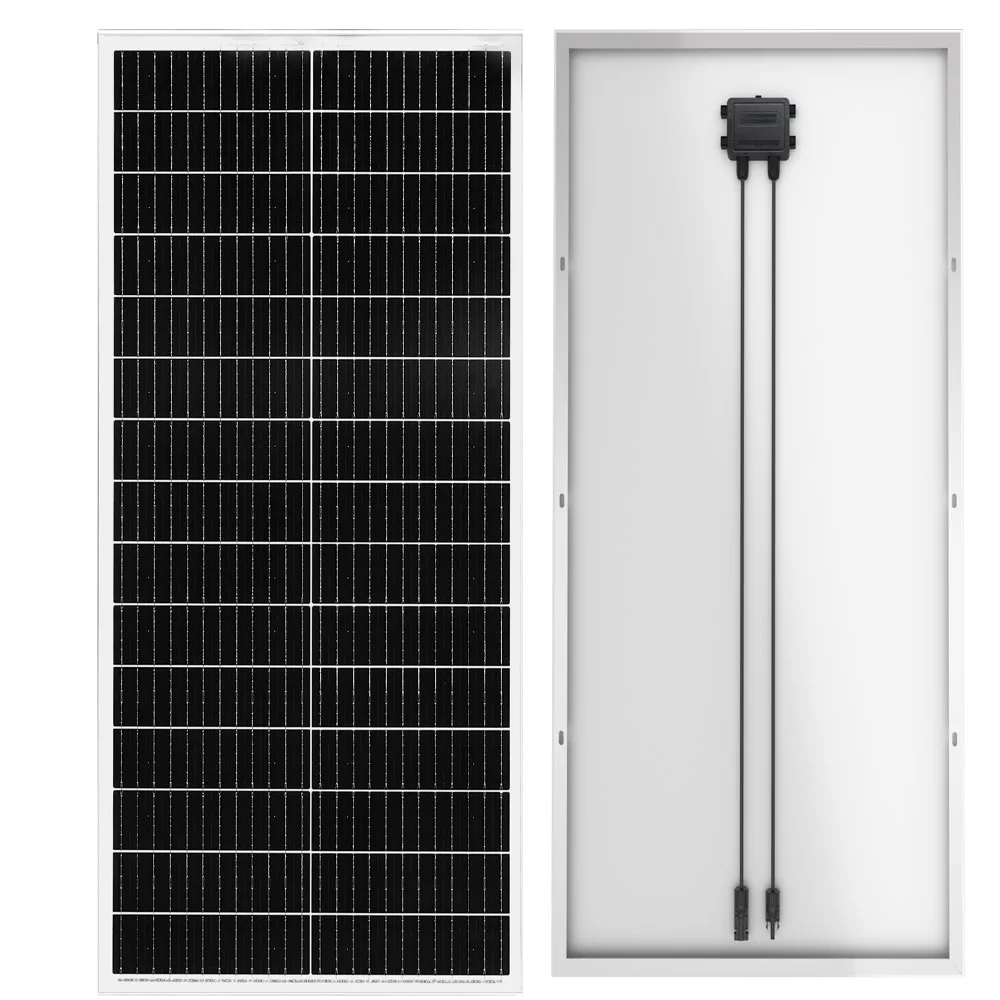

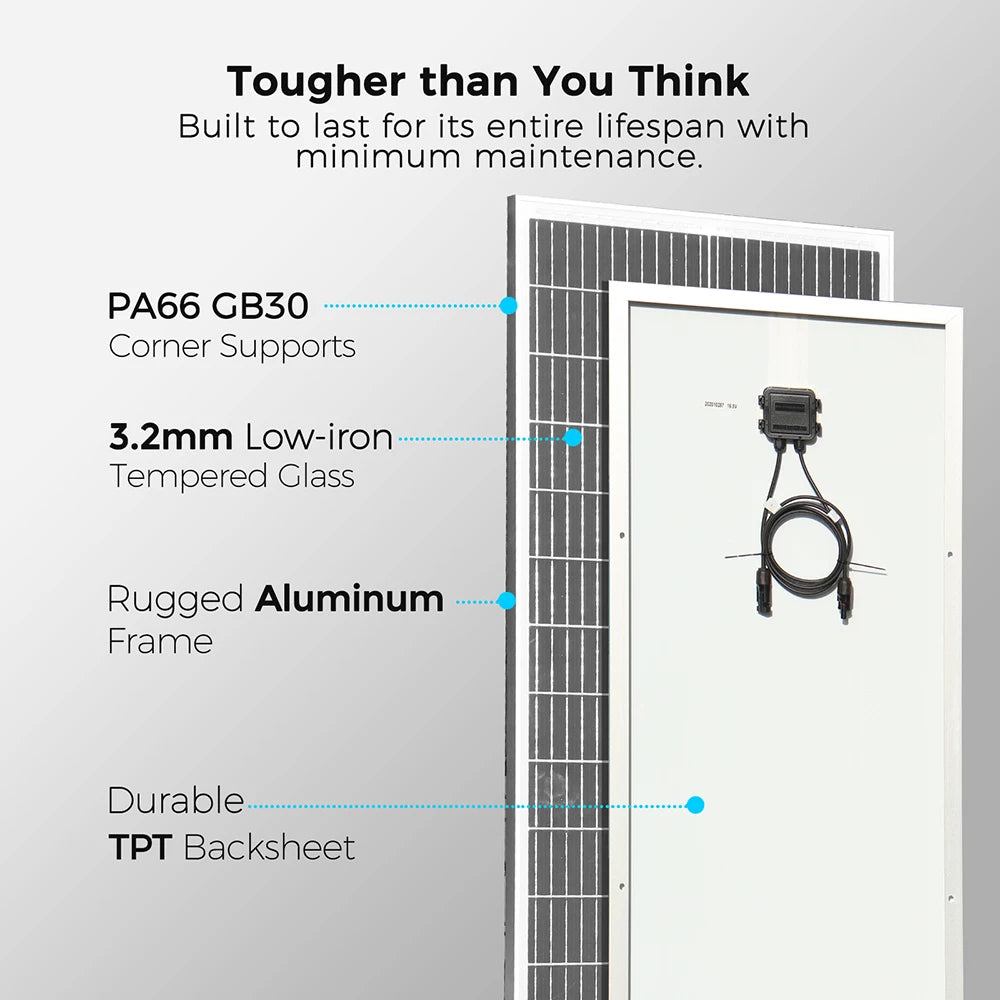

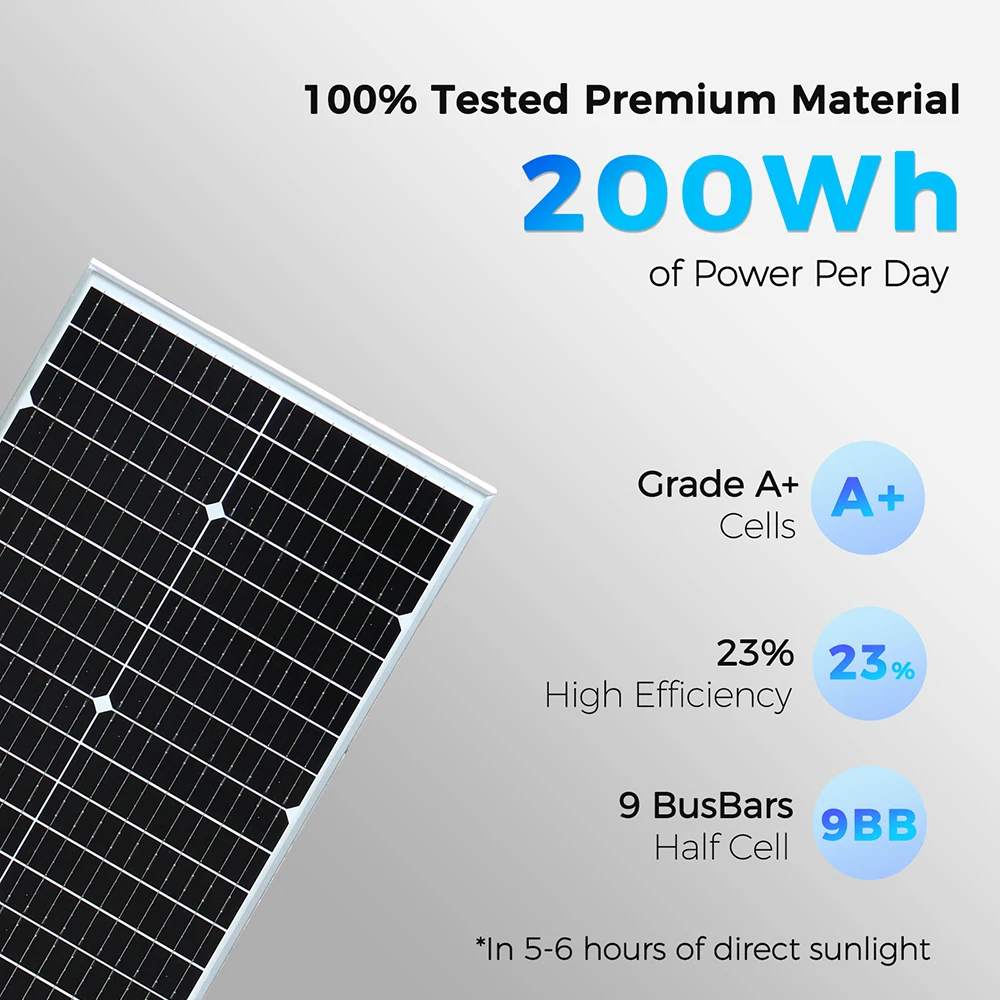

High Efficiency Monocrystalline Solar Cells, heavy duty anodized aluminum frame, the corrosion-proof aluminum frame and tempered glass coating shield the panel from weathering and wear.

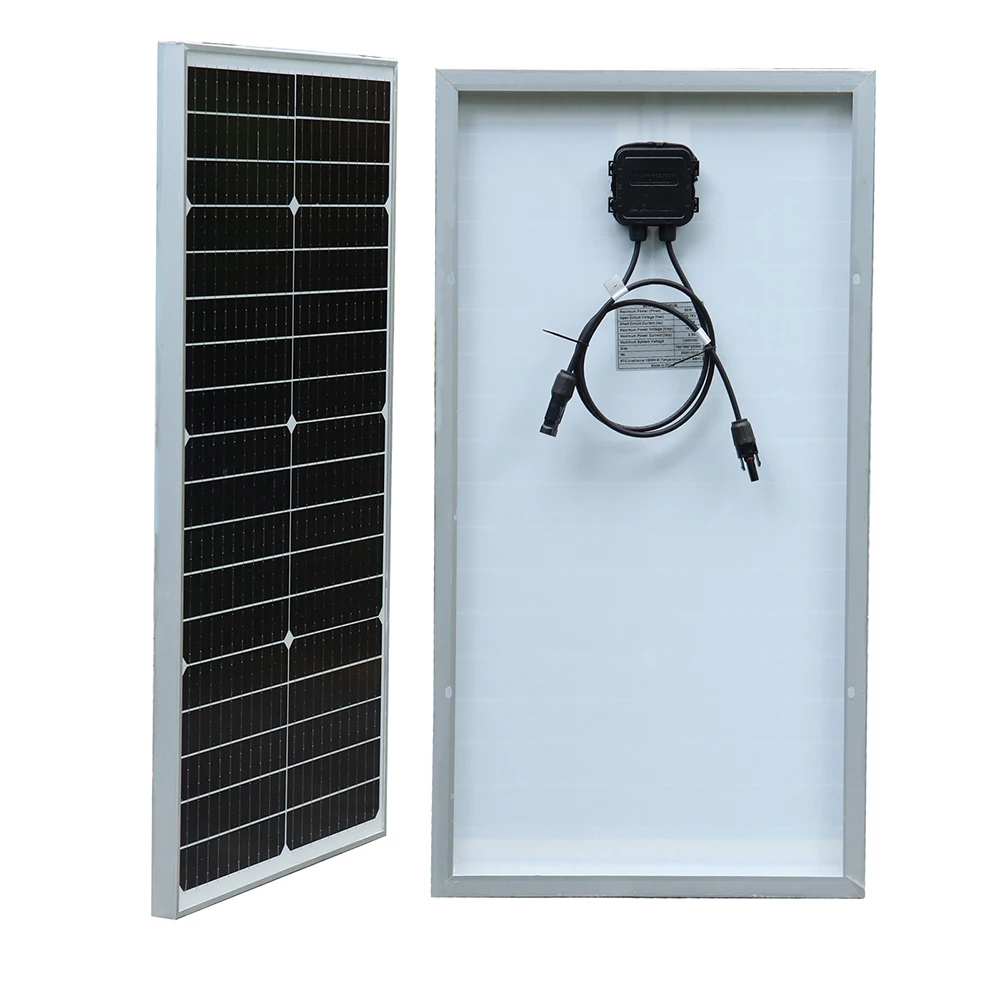

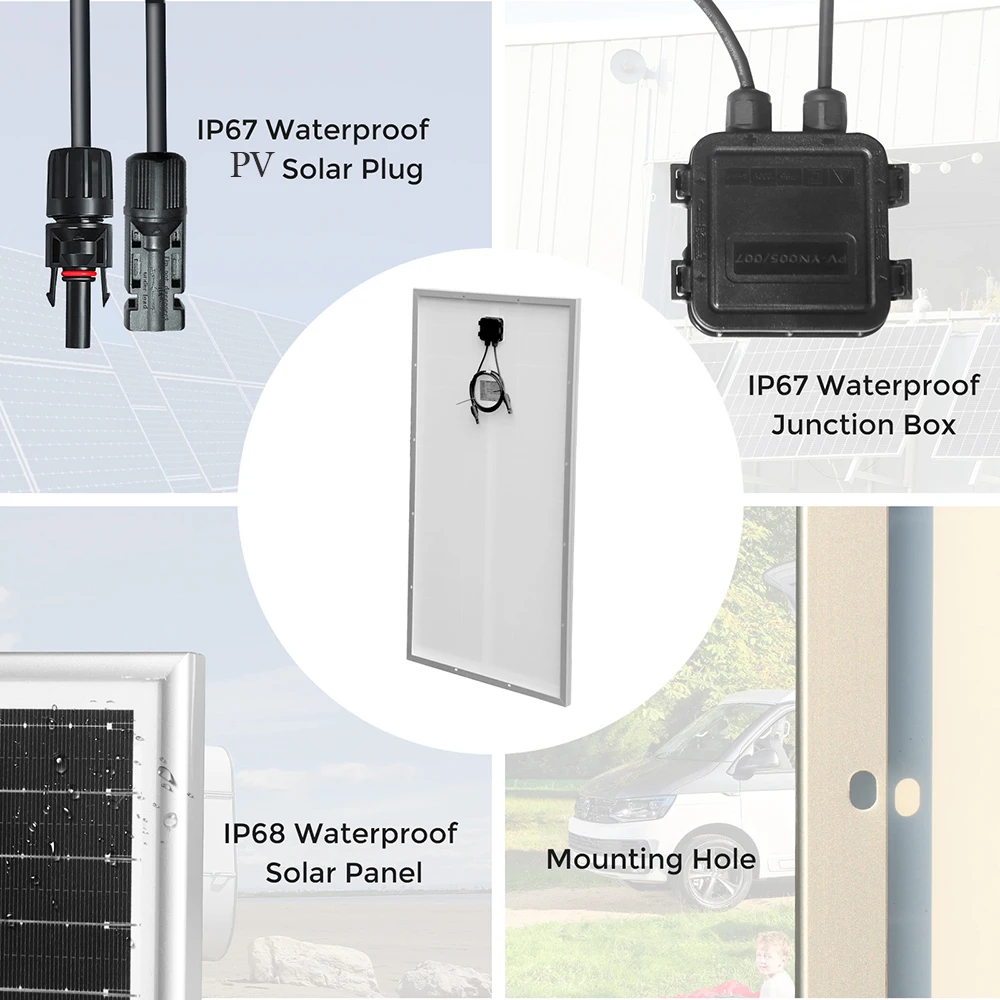

Lightweight and Durable:The four corners are equipped with protective cases to better protect the glass plate and be more sturdy.Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.Compare with similar items

12 months warranty and lifetime technical supports.

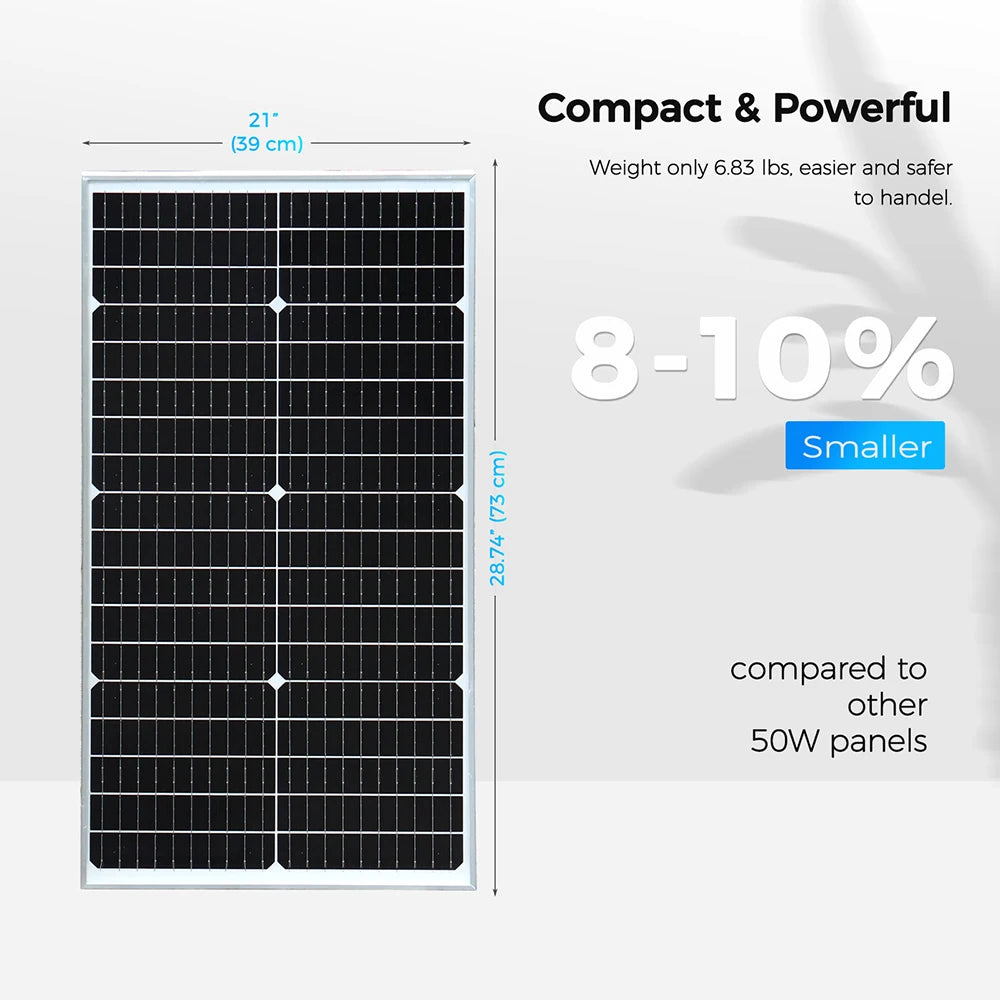

50W Solar Panel B Product information

Technical Details
Maximum power(Pmax) 50W

Output tolerance ± 3%

Maximum system voltage 1000V DC

Open circuit voltage(Voc) 23.76V

Short circuit current(Isc) 2.78A

Maximum power voltage(Vmp) 19.8V

Maximum power current(Imp) 2.53A

Cell efficiency 24%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Cell Monocrystalline silicon

Number of cells 36pcs

Weight 3.1Kg

Size 730 x 390 x 25 MM

Surface material Toughened glass

Back film Color White

Output port 0.5 m long PV connector wire

Waterproof Yes

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

16.5V 100W Glass Solar Panel Specifications

Technical Parameters:

100W solar panel

Monocrystalline high efficiency

Rated power: 100W

Open Circuit Voltage (Voc): 19.8V

Maximum supply voltage (Vpm): 16.5V

Short circuit current (Isc): 6.36A

Working current (Iop): 6.06A


Output tolerance: ±5%

Temperature range: -40℃ to +80℃

Size: 44.33x18.03x0.98inch (1126*458*25mm)

Weight: 13.22 lbs (6kg)


Surface material Toughened glass

Back film Color White

Output port 0.9 m long PV connector wire

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

Specification of 120w 18.15V

Maximum power(Pmax) 120W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.78V

Maximum power voltage(Vmp) 18.15V

Short circuit current(Isc) 6.9 A

Maximum power current(Imp) 6.6A

Cell efficiency 24%

Operating temperature（NOCT) 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 6.6kg

Size 1045*550*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

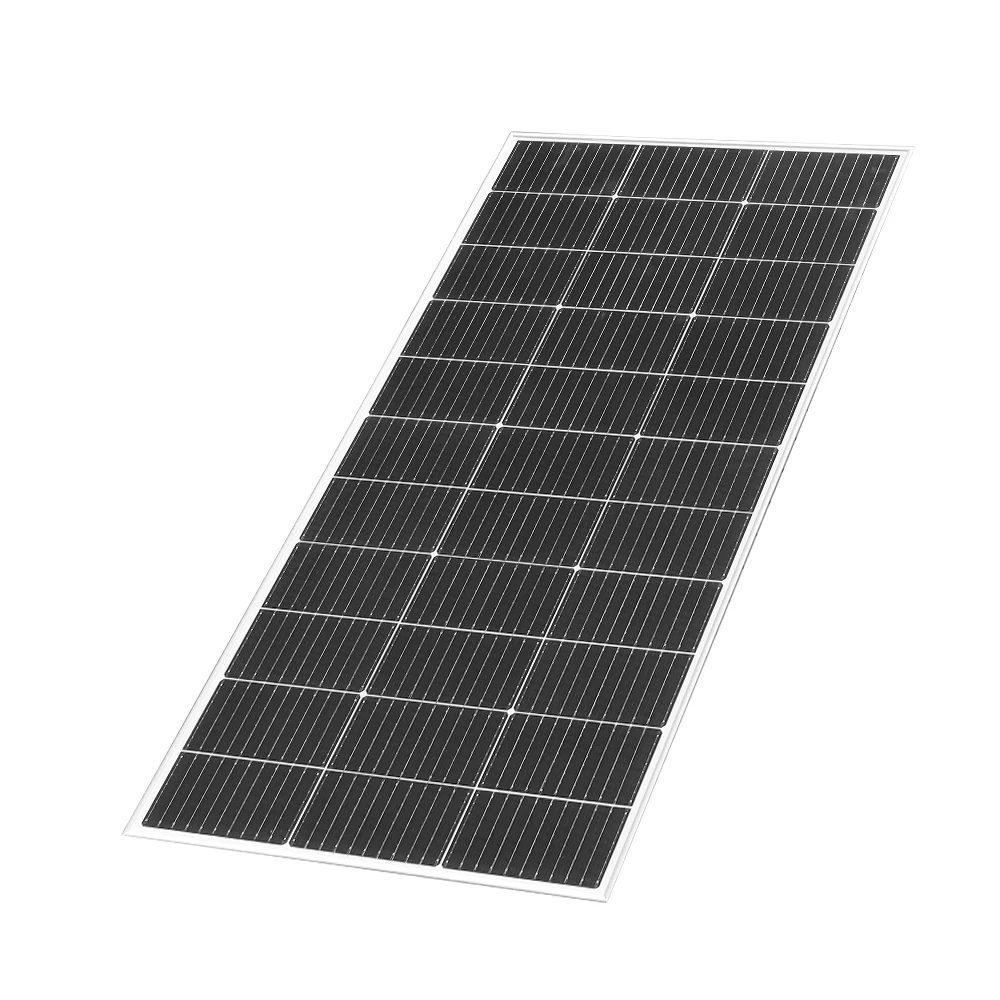

Glass 19.8V 150W SOLAR PANEL Product specification

specificationMaximum power (Pmax) 150W

Maximum system voltage 1000V DC

Open circuit voltage (cov) 23.76V

Short circuit current (Isc) 7,94 A

Vmp 19.8V

Maximum power current(Imp) 7,57 A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 36 pieces

Cell efficiency 24%.

Weight 6.9kg

Size 1140*560*25mm

Standard test conditions lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Surface material Toughened glass

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell

performance and provide a long service life.

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and

snow loads (4000Pa)

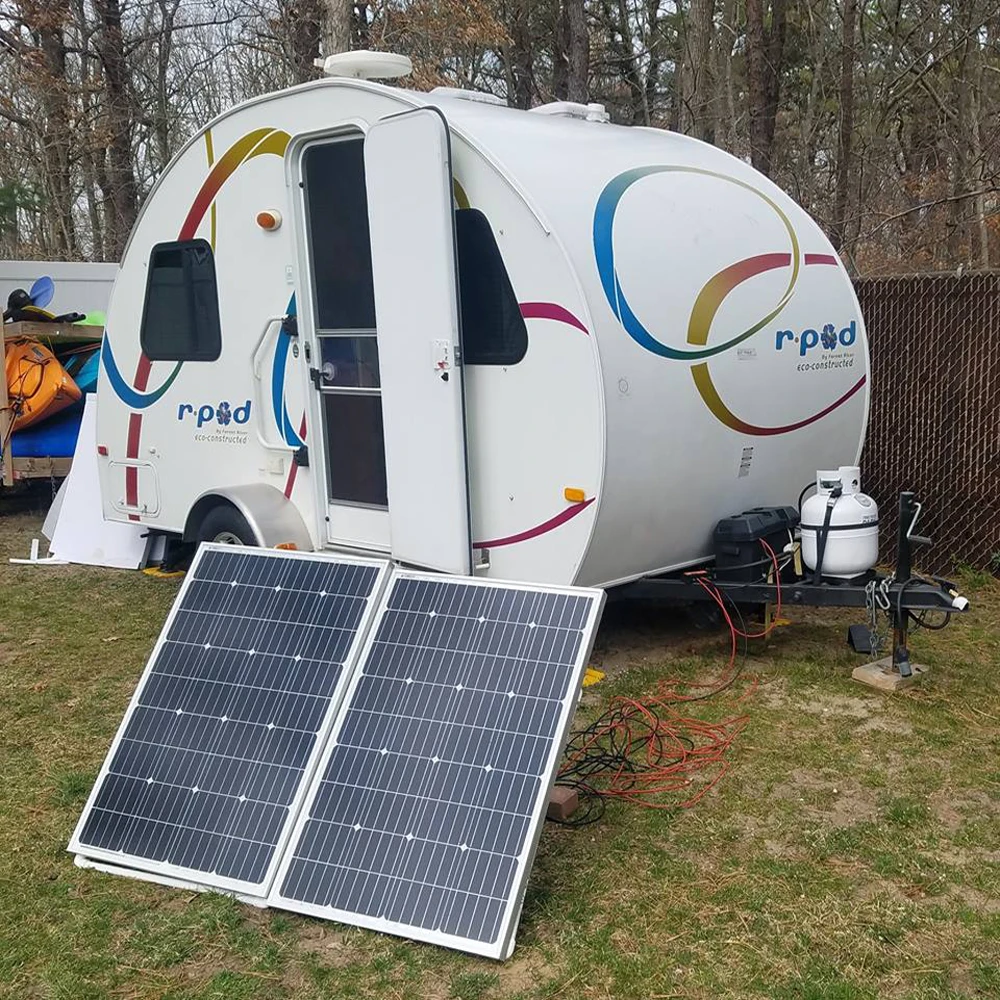

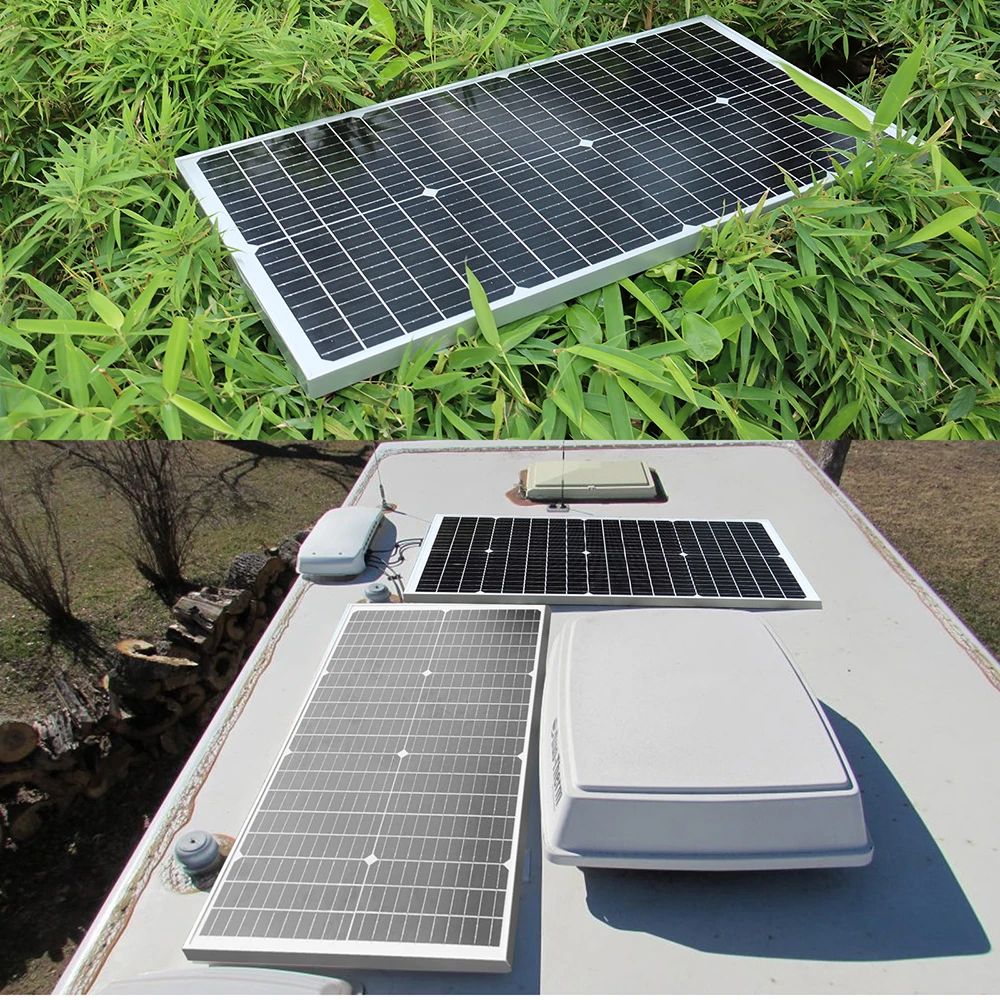

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way

this monocrystalline panel provides you with the most efficiency per space.

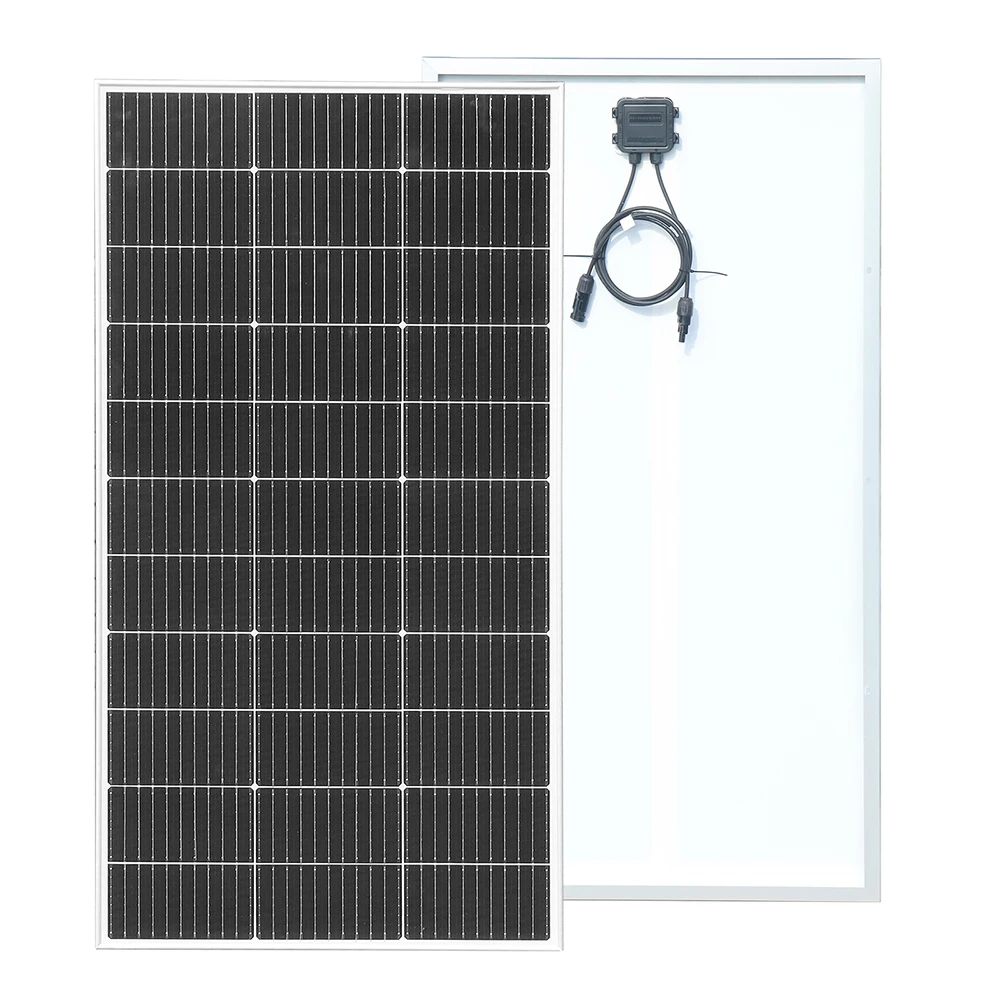

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing.
